Shade Sail Ideas & Inspiration

Use the gallery as inspiration rather than as an exact installation plan. Every garden, patio and building has different dimensions, sun exposure and available fixing points.

Look particularly at the position of the sail, the height of its corners, the location of the anchor points and how the shape has been used to place shade over the area where it is actually needed.

Before choosing a sail, measure your own space and identify suitable structural fixing points.

The best shape depends on the area you want to shade and the position of the available anchor points.

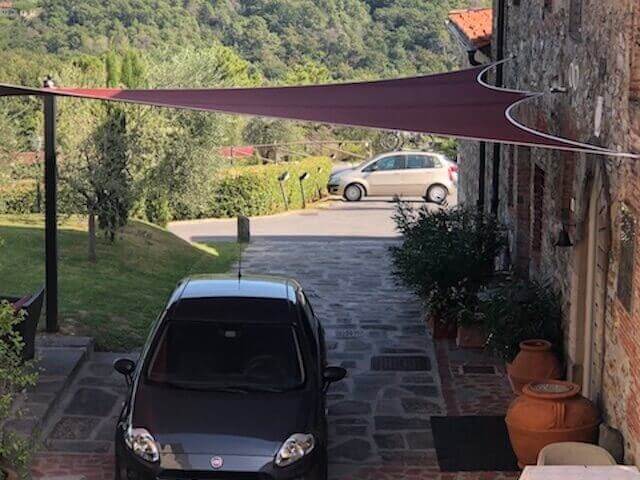

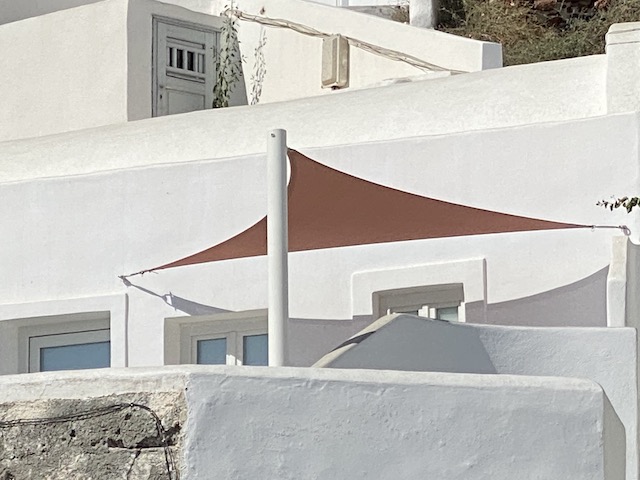

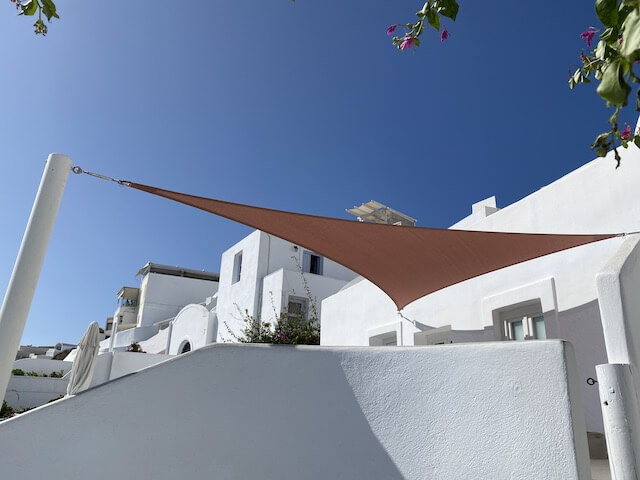

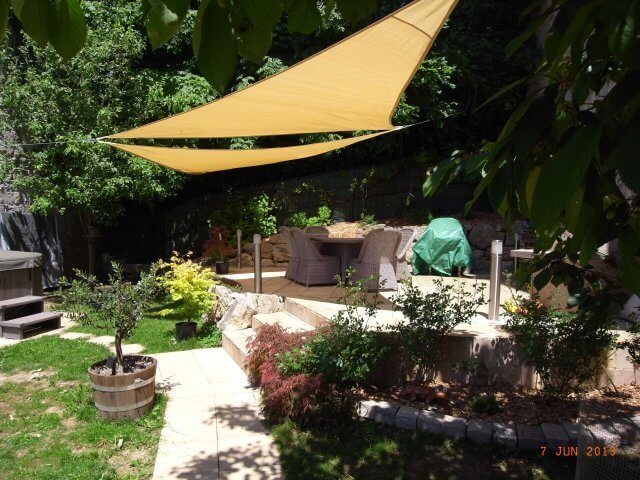

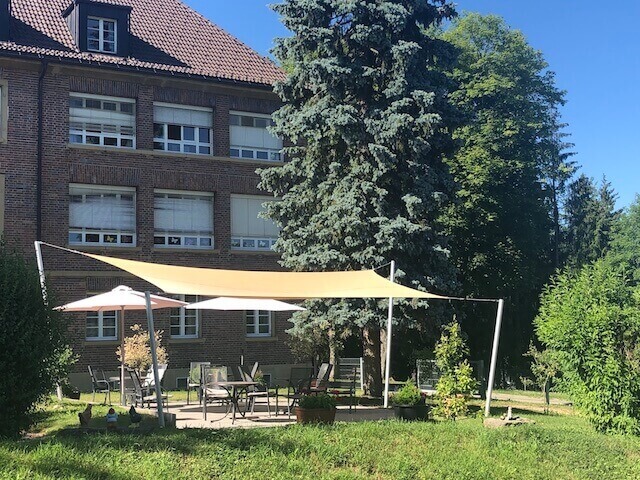

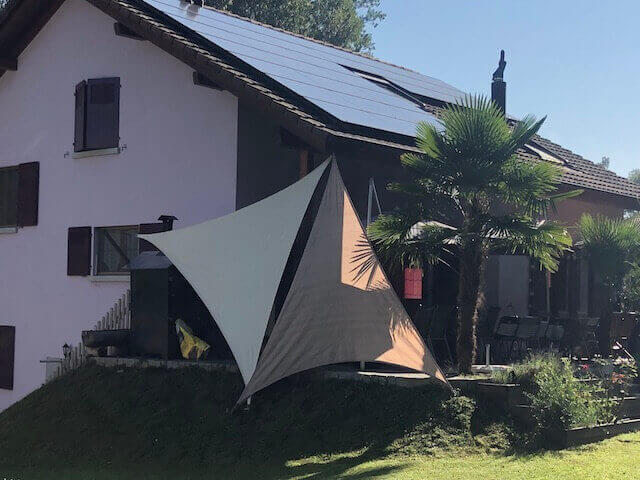

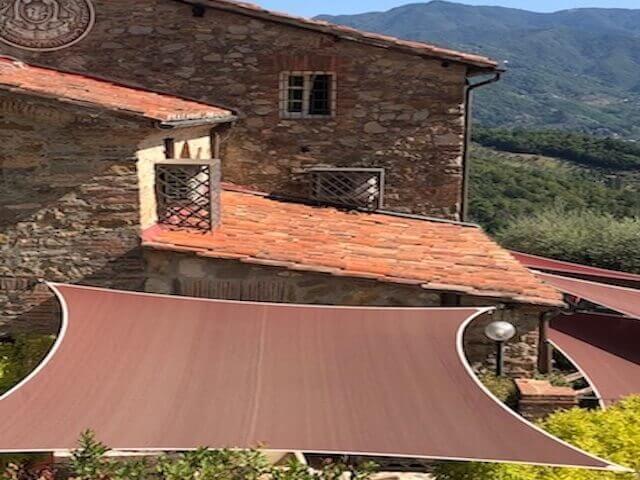

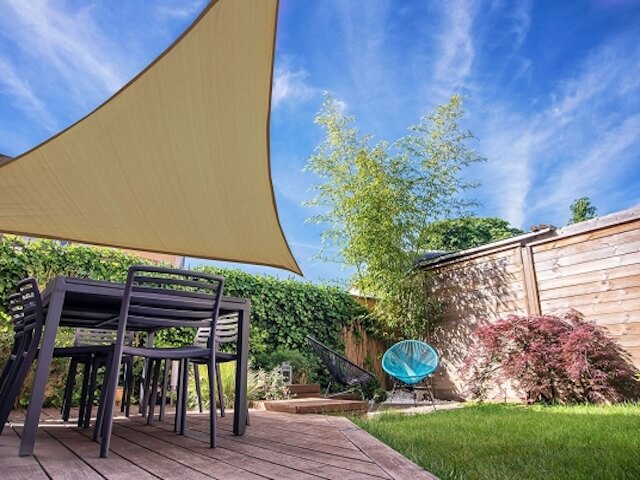

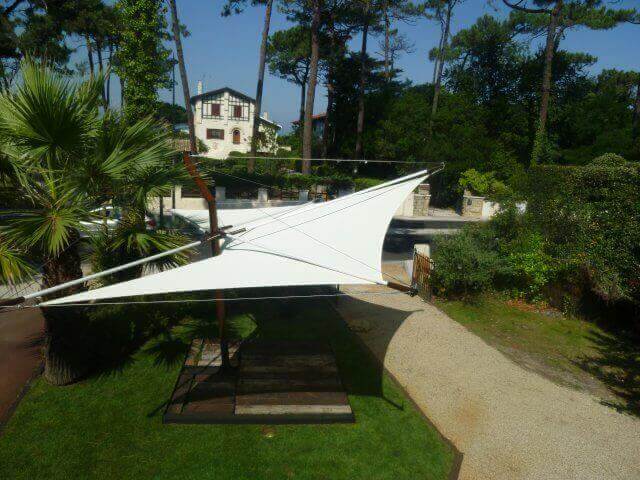

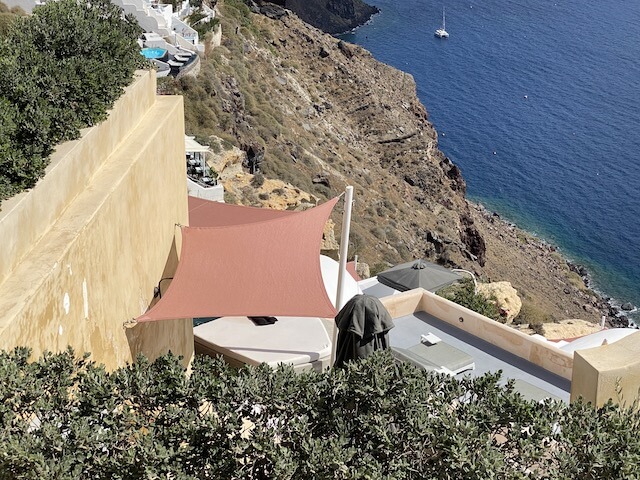

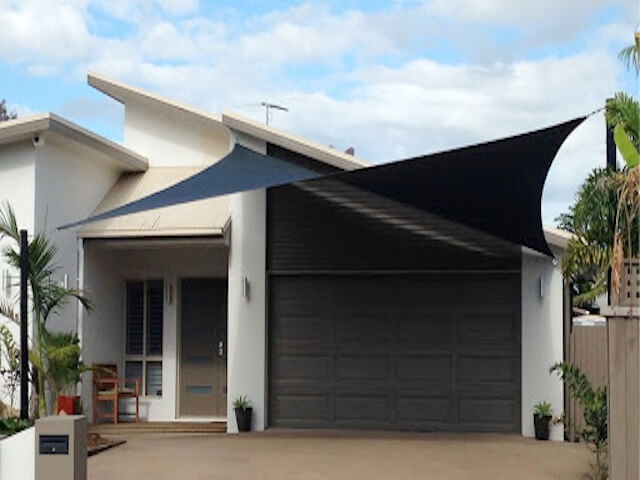

Triangular shade sails use three fixing points and work particularly well where a lighter or more flexible layout is required. Square sails create a broad, regular area of shade, while rectangular sails are especially useful over longer patios, dining areas and similar spaces.

You can compare our triangular, square and rectangular Coolaroo shade sails to find the dimensions and shape that best suit your installation.

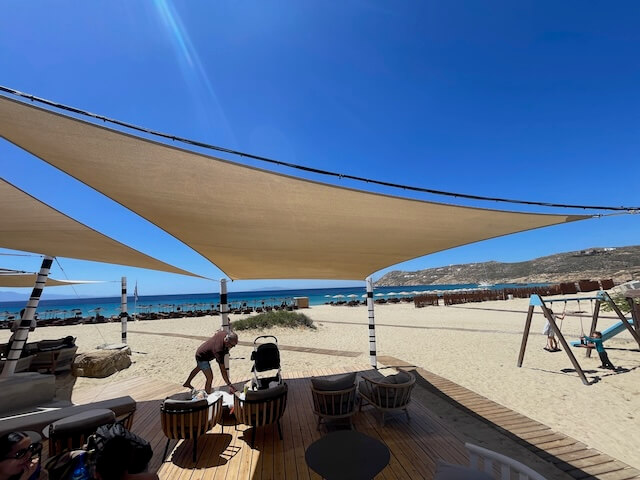

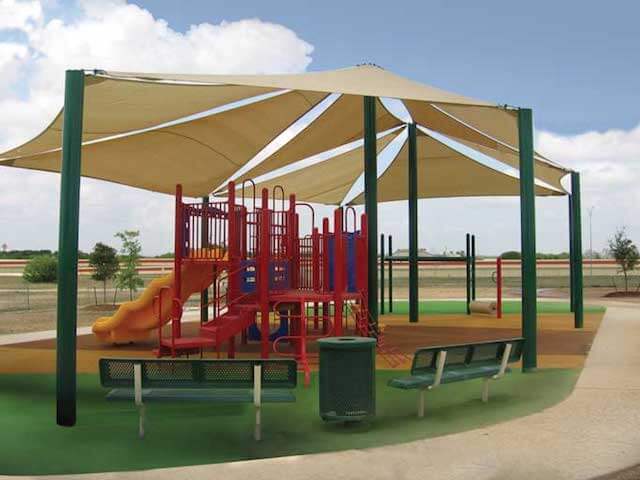

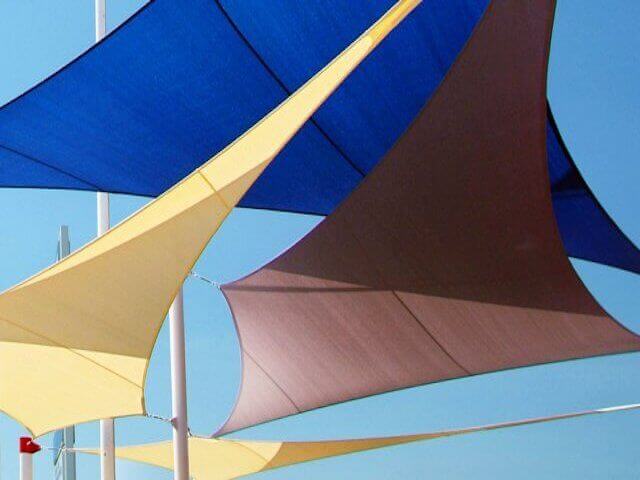

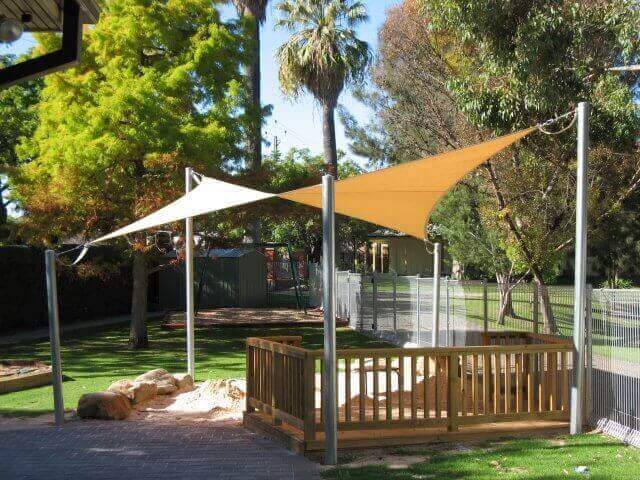

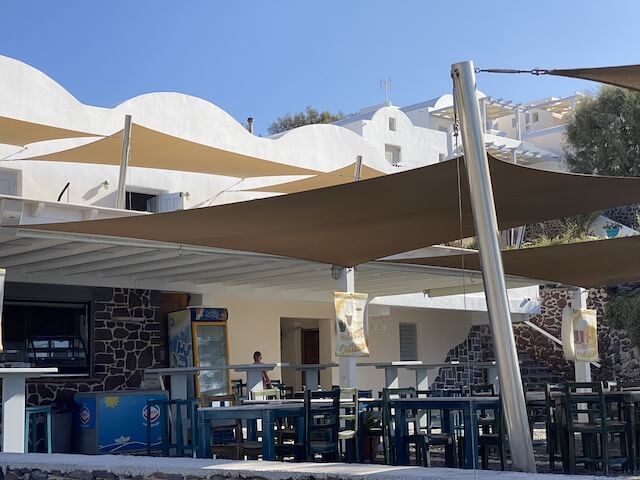

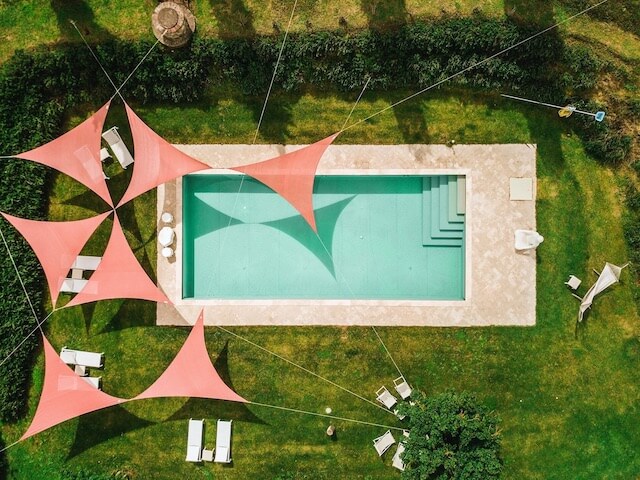

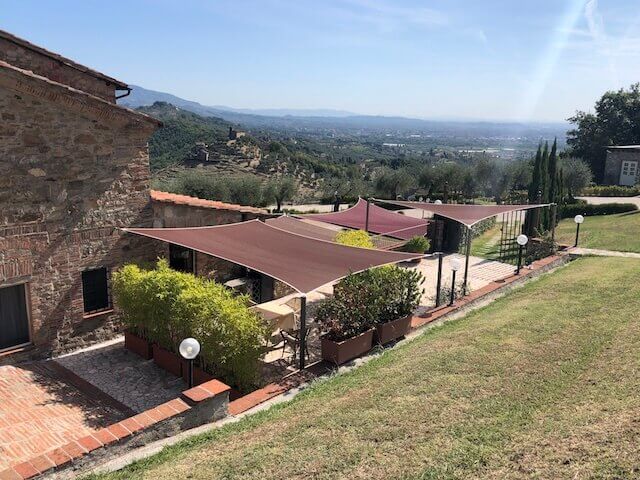

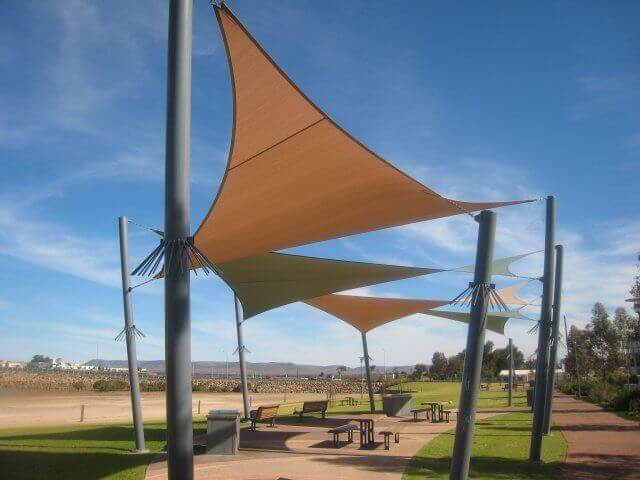

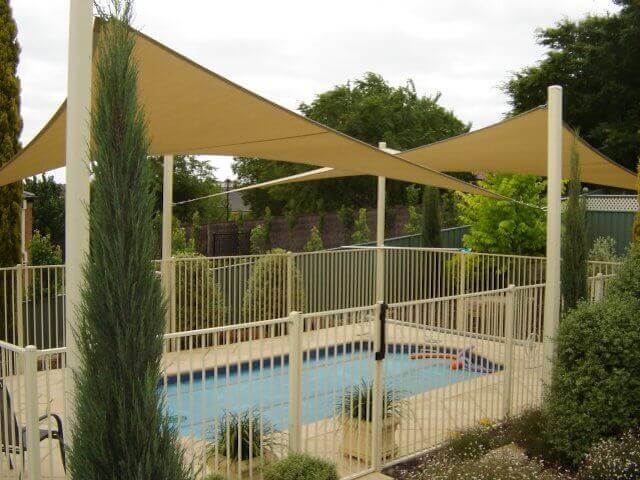

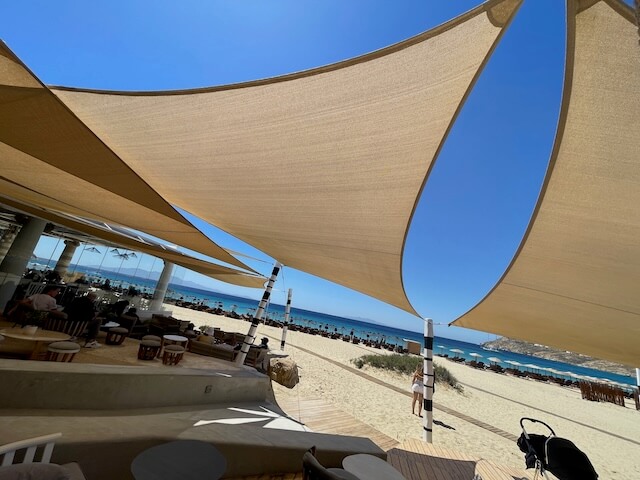

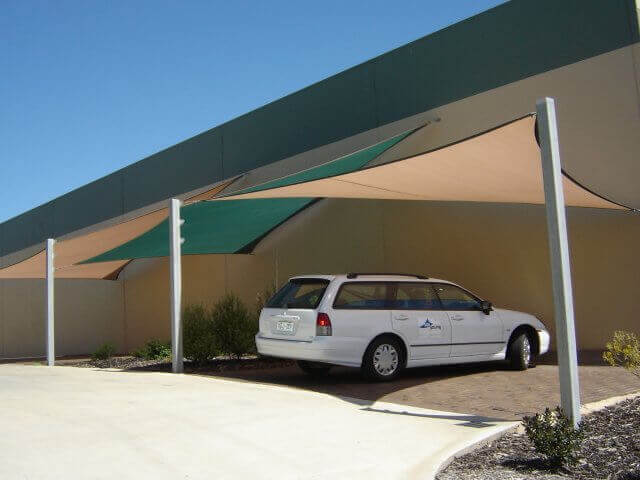

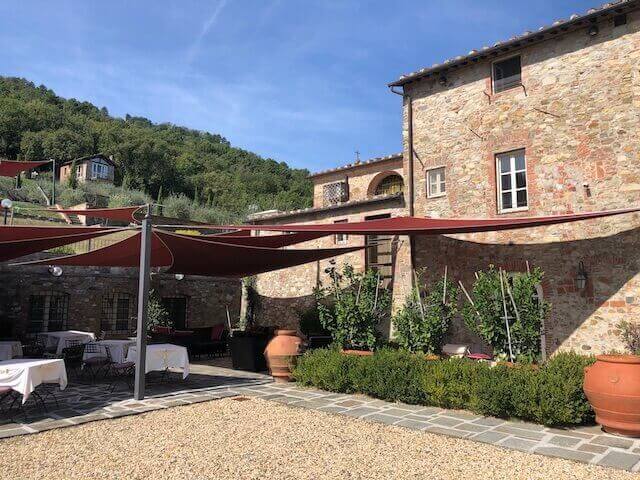

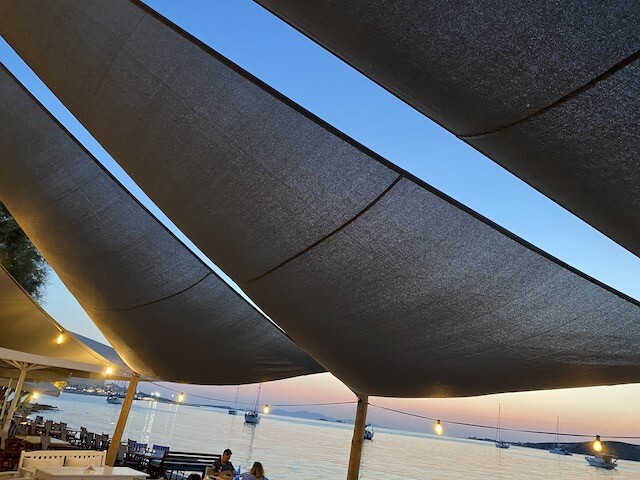

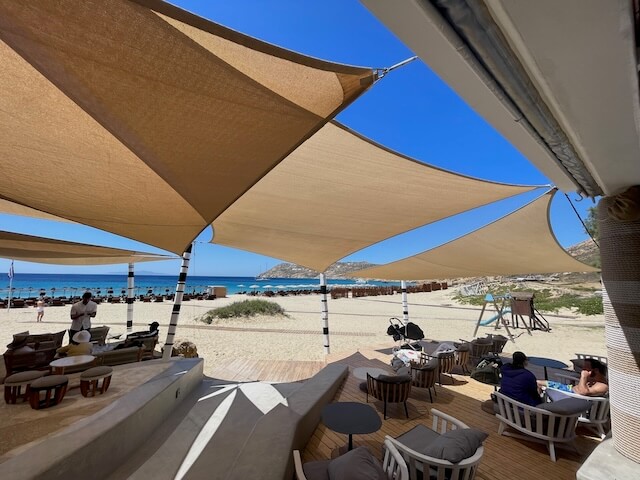

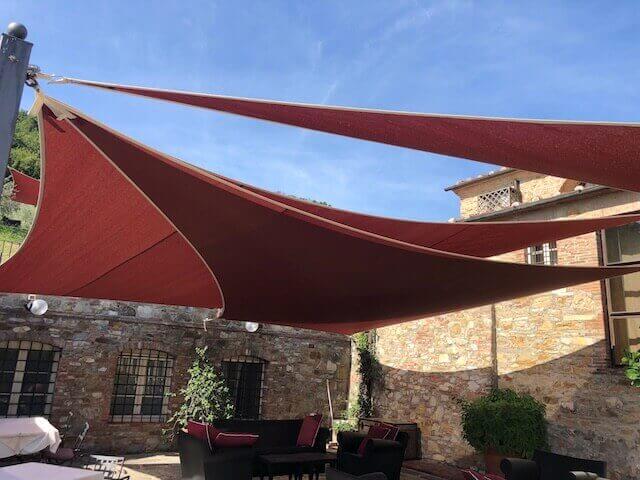

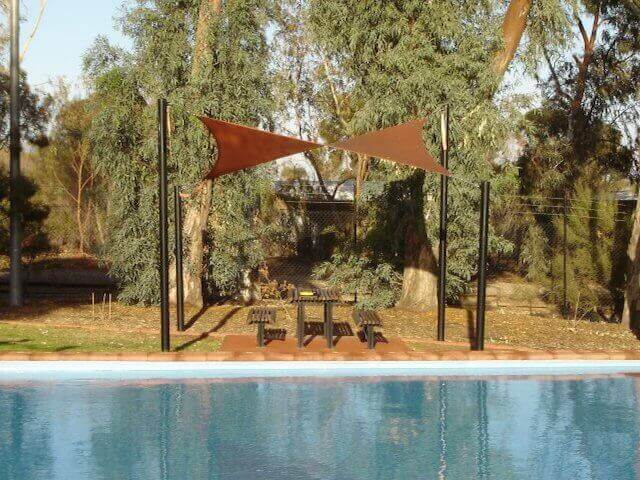

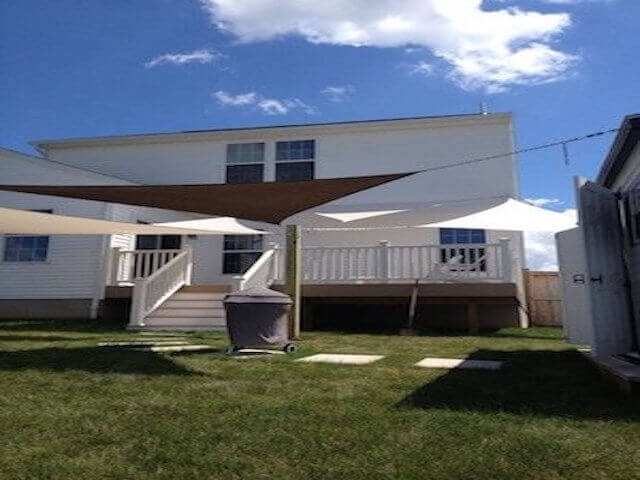

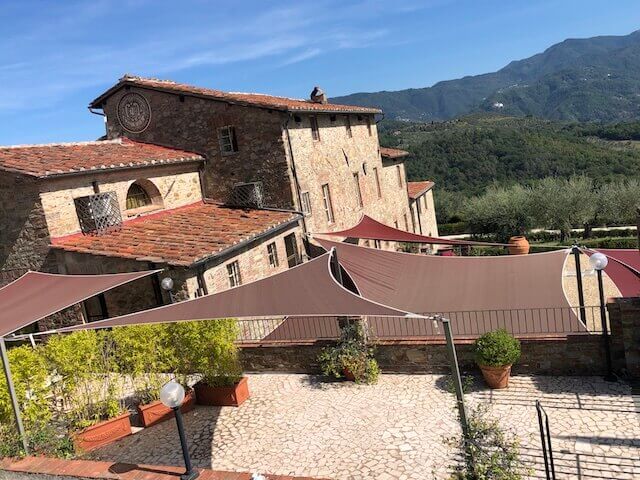

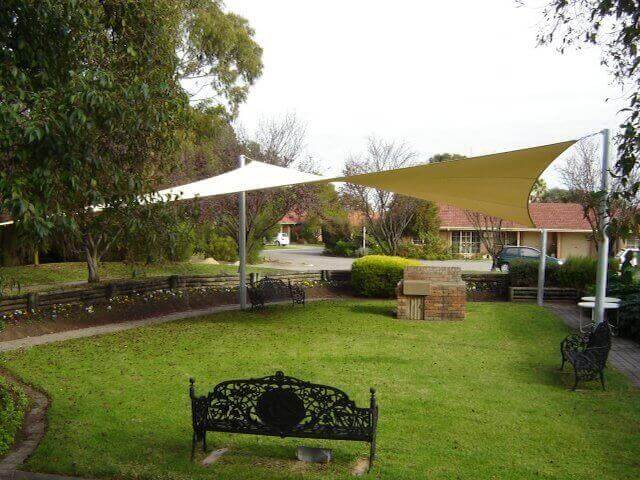

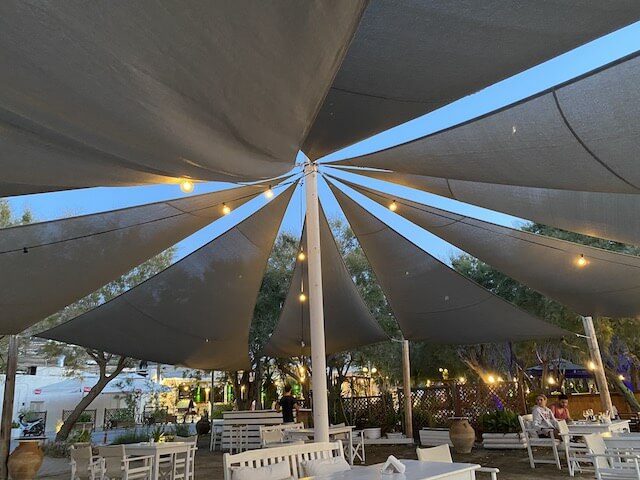

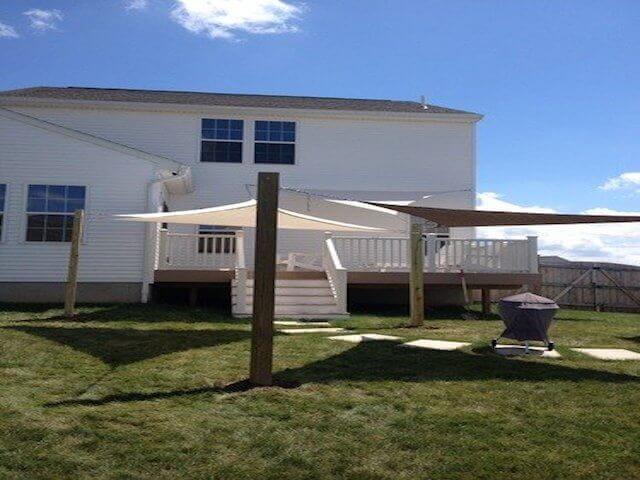

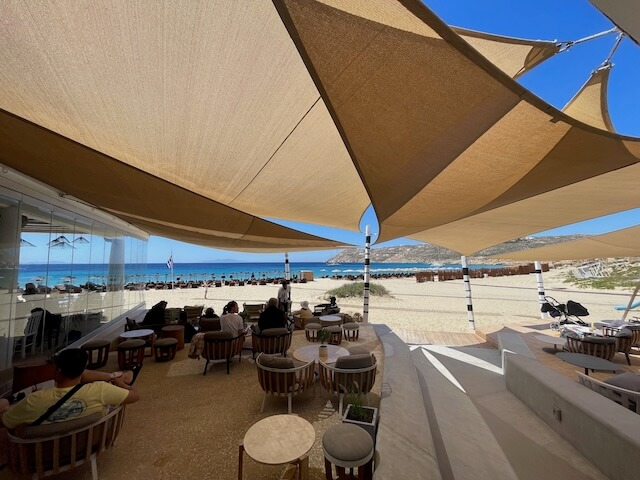

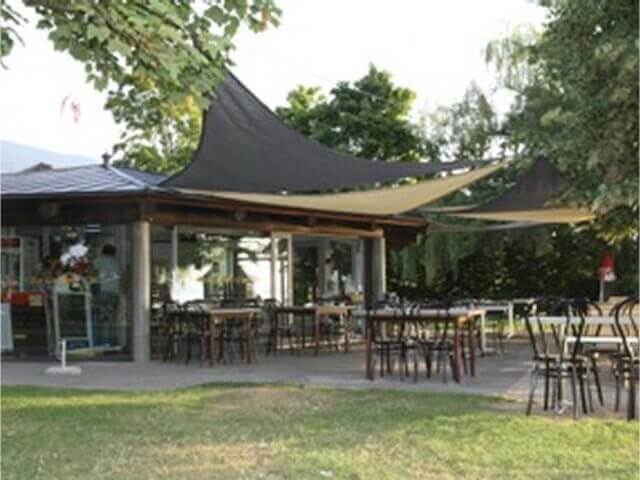

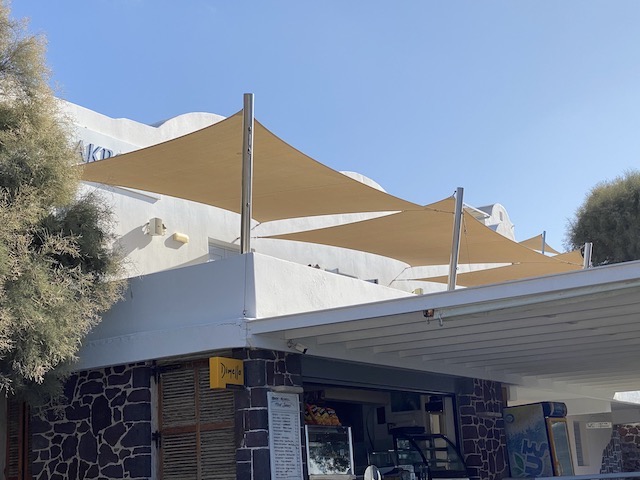

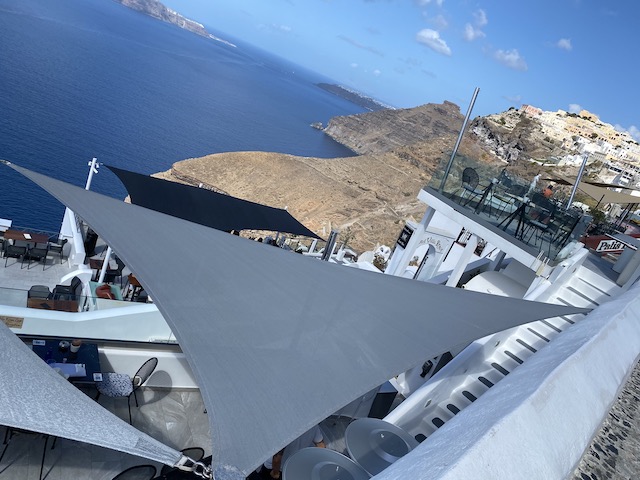

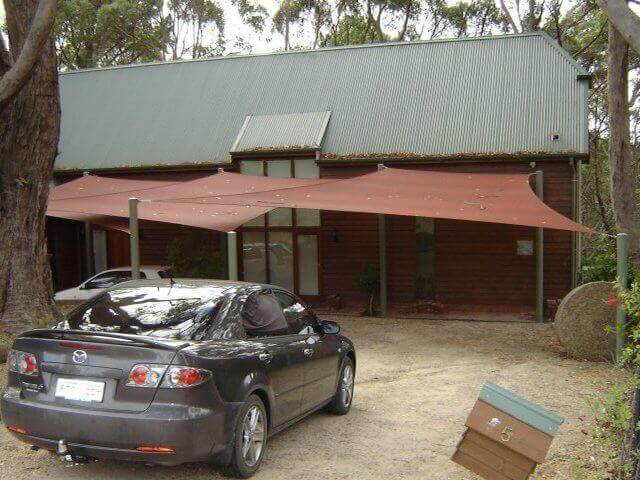

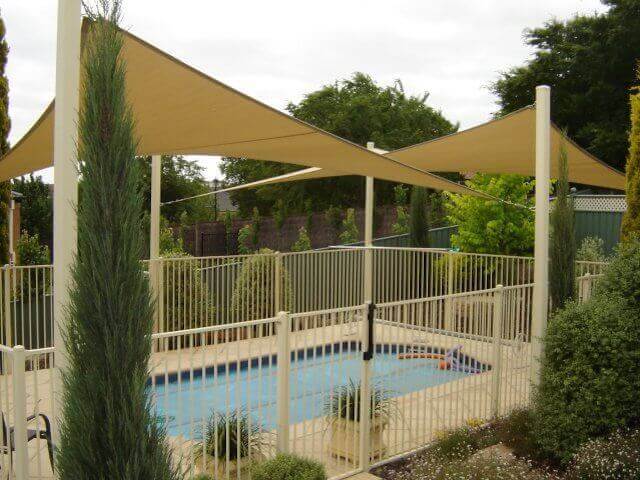

Yes. Two or more standard-size shade sails can be an effective way of shading a larger or irregular outdoor area.

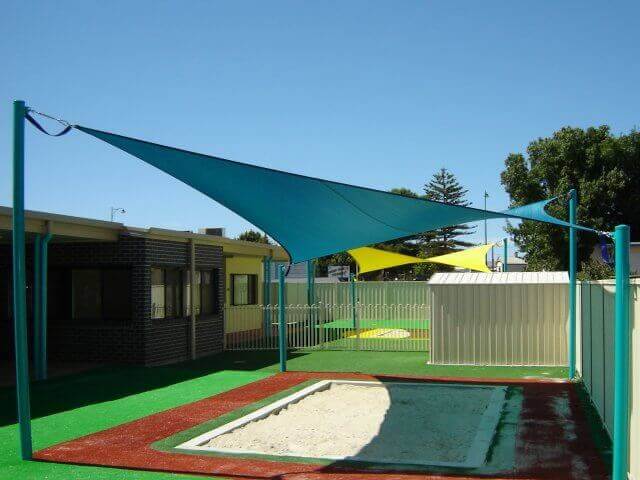

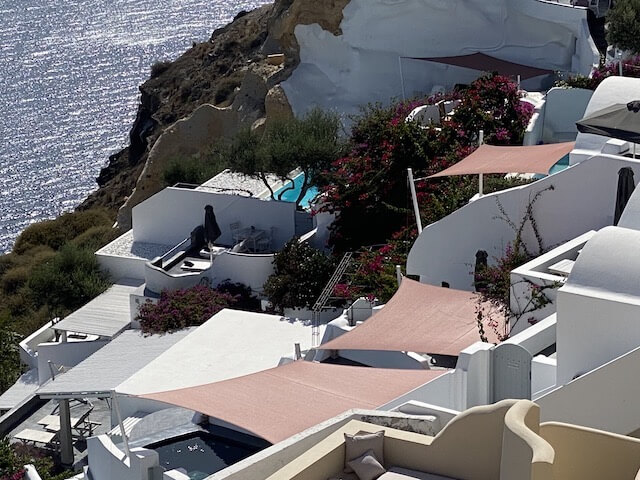

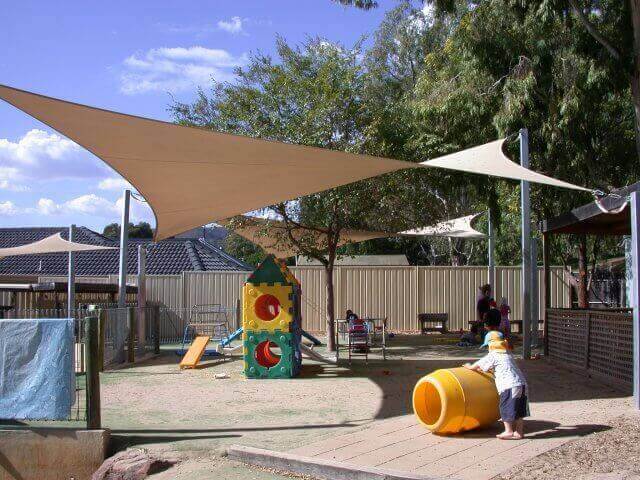

Multiple sails can also create separate shaded zones for seating, dining, play areas or different parts of a garden.

Allow adequate clearance between neighbouring sails. They can move in the wind, so we do not recommend positioning them so close together that the fabrics can repeatedly rub or strike each other.

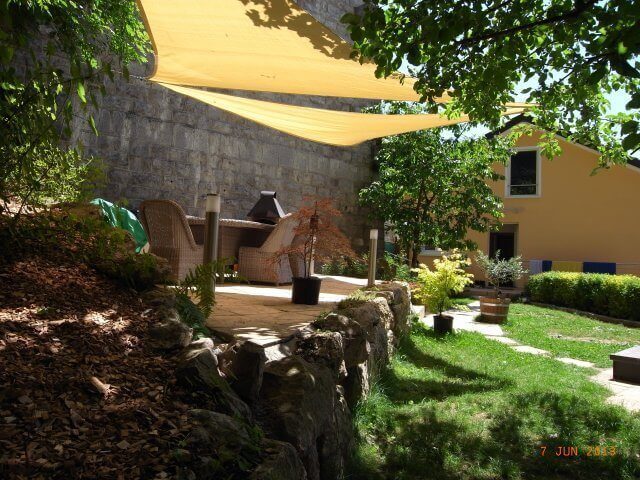

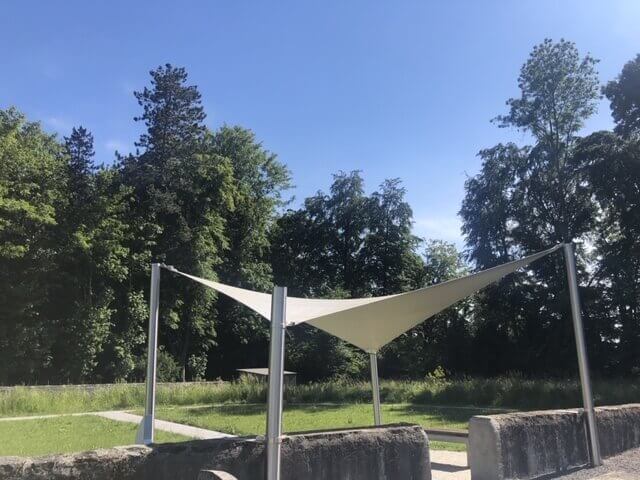

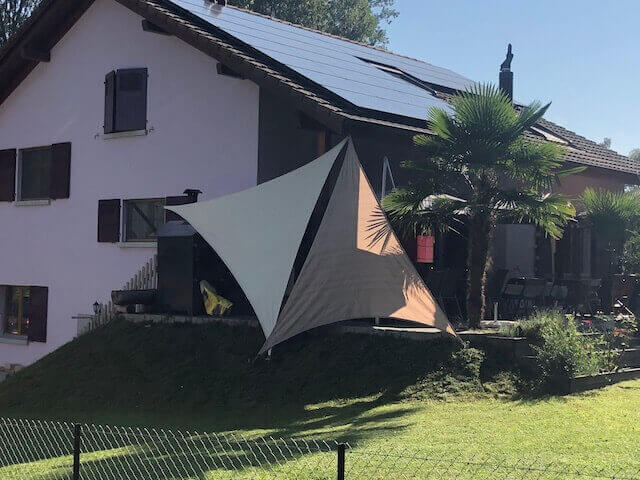

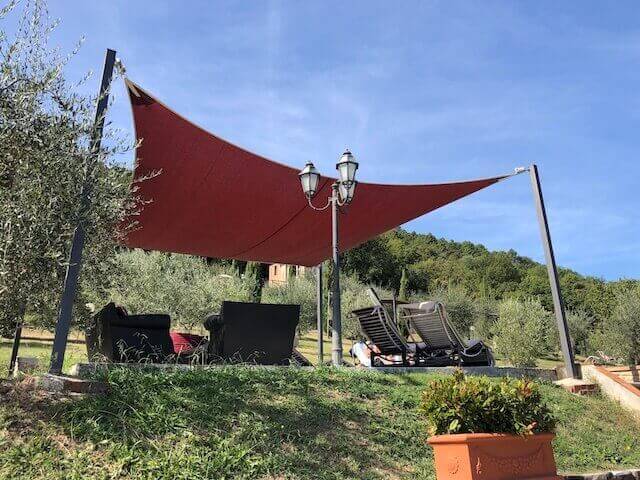

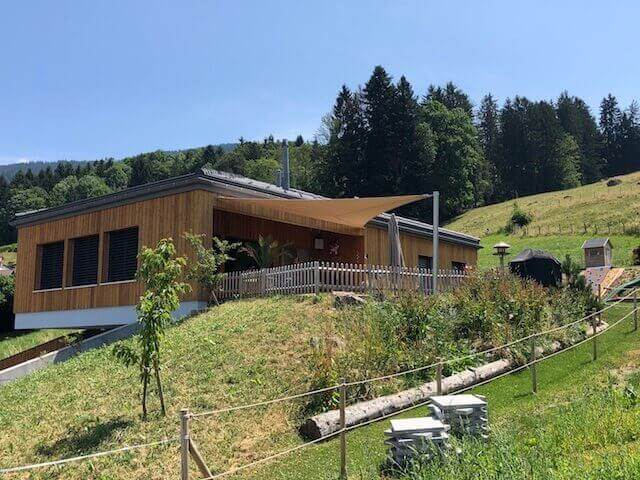

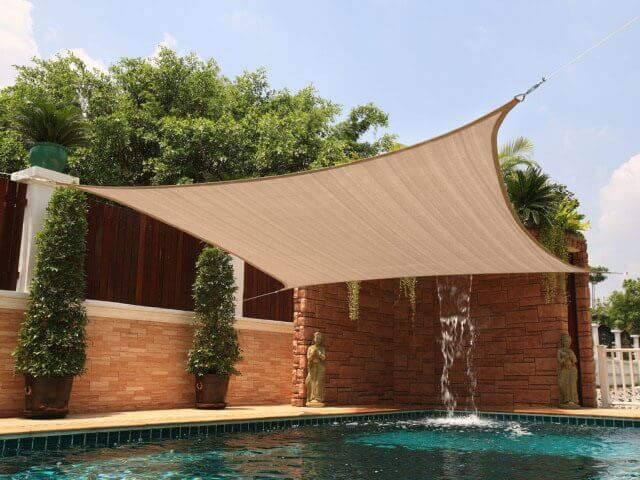

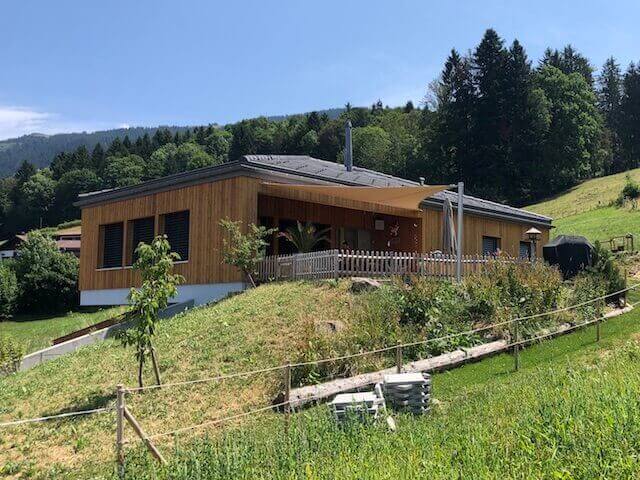

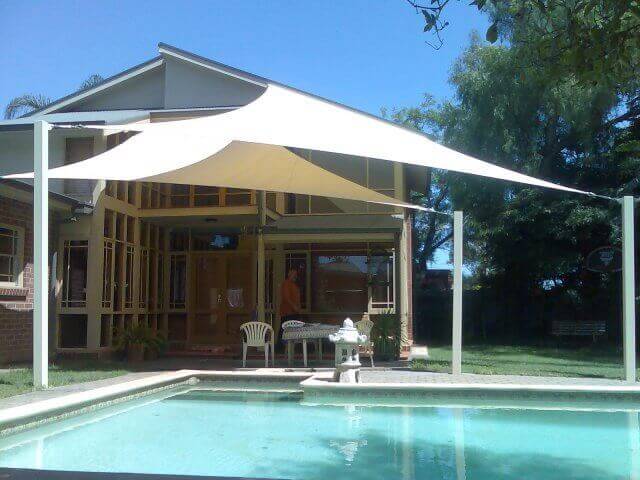

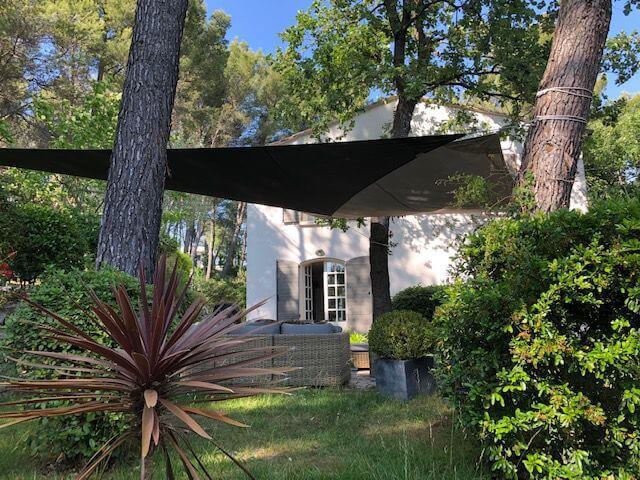

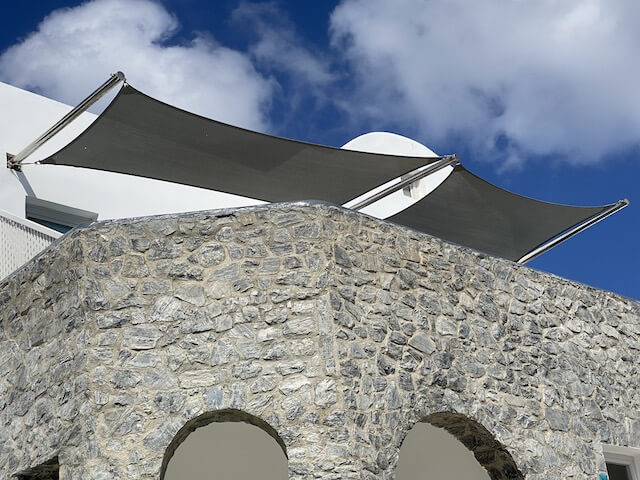

Not necessarily. Varying the height of the fixing points can create an attractive three-dimensional shape and can help establish a useful fall across the sail.

What matters most is that every anchor point is suitable for the loads involved and that the sail can be correctly tensioned.

The final arrangement should combine effective shade with appropriate tension, clearance and drainage.

A shade sail should be smaller than the distance between its fixing points because space is required for the tensioning hardware.

With our illustrated fixing system, the turnbuckle, snap hook and associated components typically require approximately 280 to 365 mm between a corner of the sail and its anchor point.

The precise allowance depends on the sail, fixing arrangement, supports and individual installation.

We supply purpose-designed fixing kits in marine-grade 316 stainless steel for triangular, square and rectangular shade sails.

Depending on the kit, the system uses turnbuckles and snap hooks together with pad eyes or eye anchors. The turnbuckles allow the sail to be progressively tensioned after installation.

The wall, post or other structure receiving each fixing must itself be strong enough for the loads created by a tensioned outdoor sail.

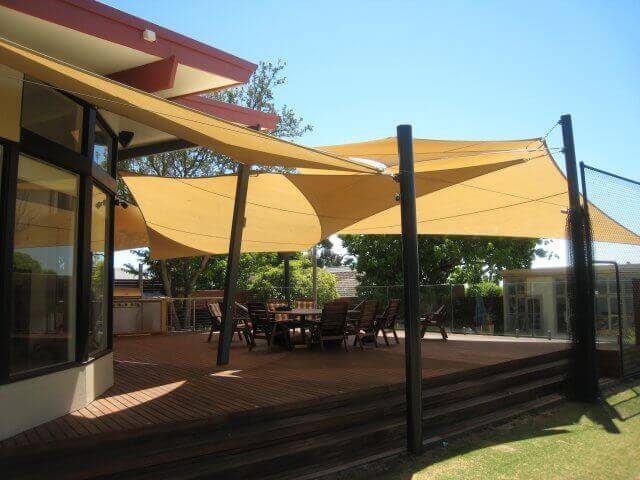

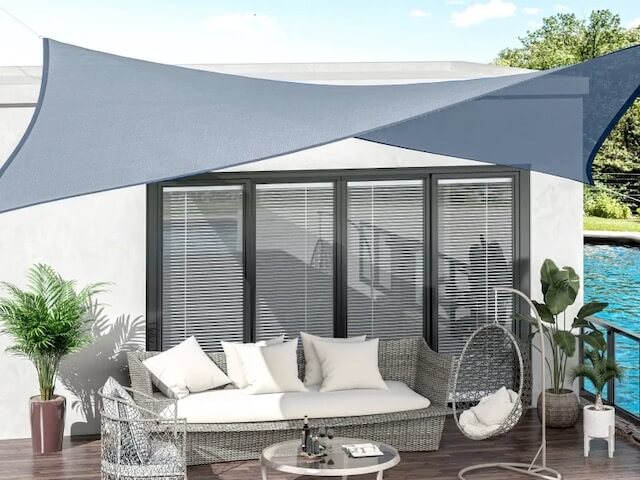

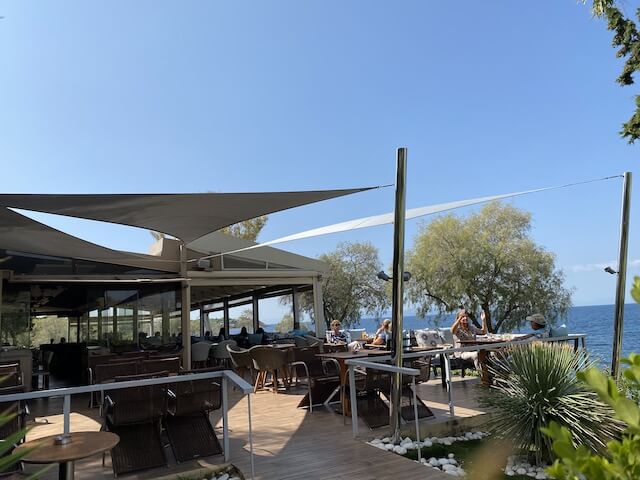

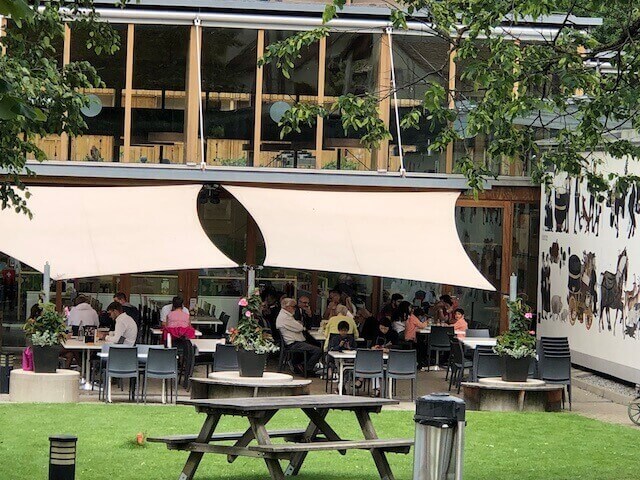

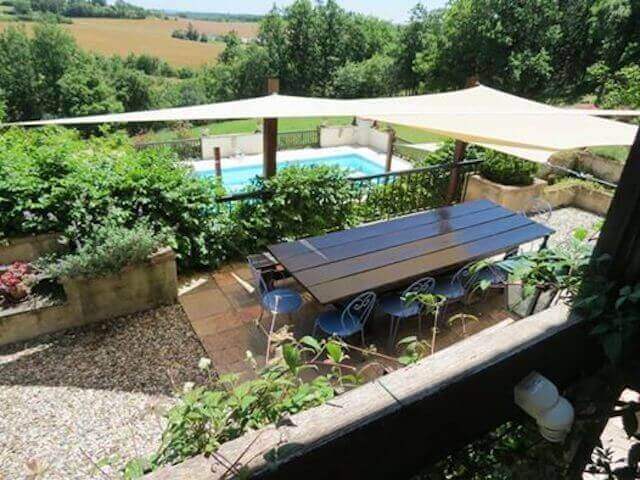

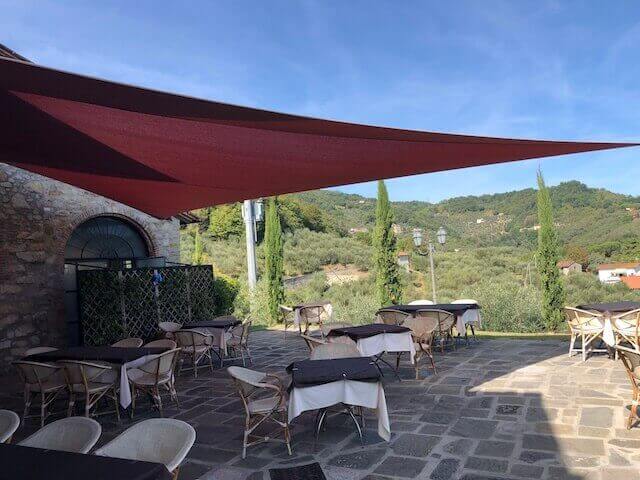

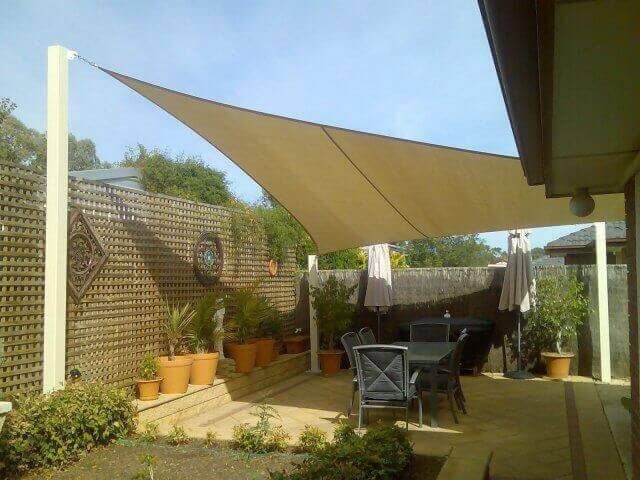

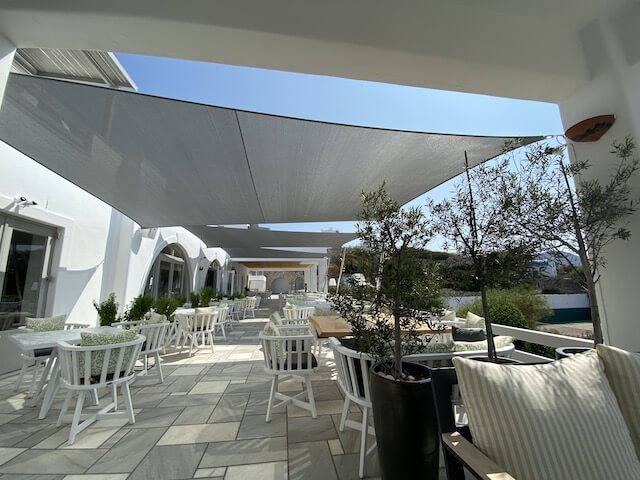

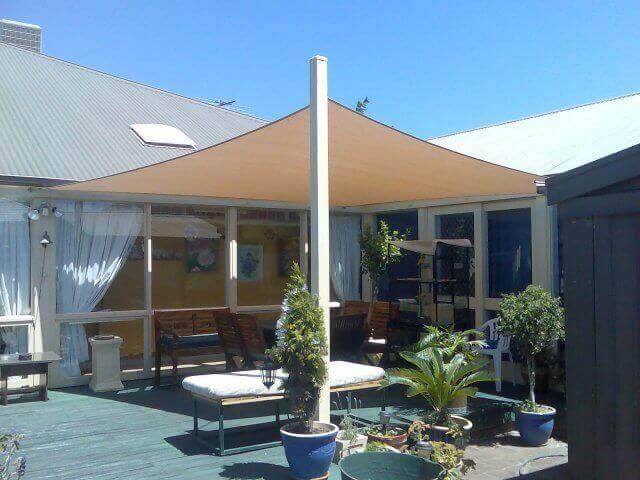

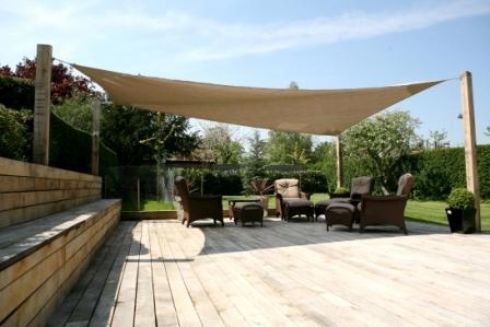

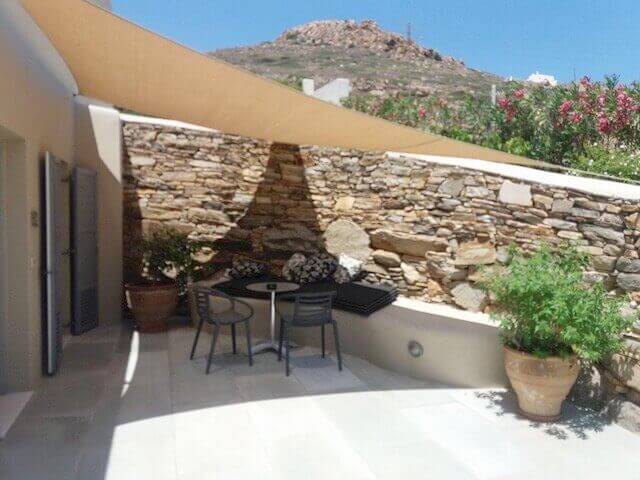

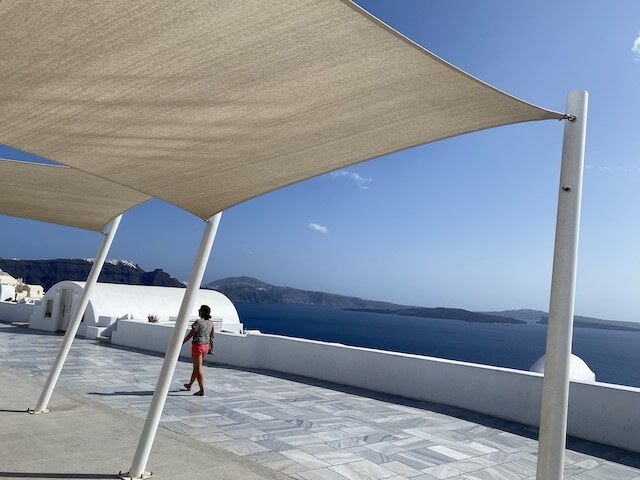

Yes. Patios and outdoor dining areas are among the most common applications for shade sails.

Position the sail according to where shade is required during the main hours the space will be used. Remember that the sun moves throughout the day, so the shaded area on the ground will not remain directly underneath the sail.

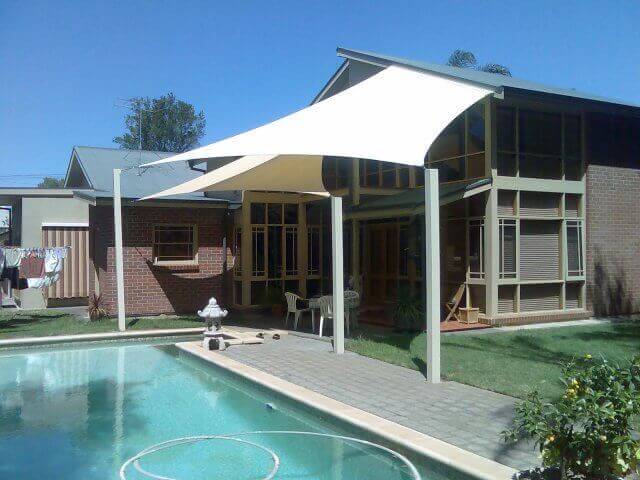

A sufficiently large square or rectangular sail can provide broad coverage, while triangular sails can be useful where the available fixing geometry is less regular.

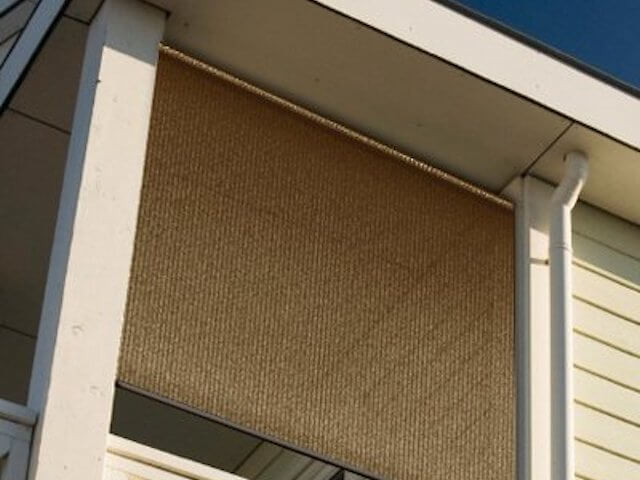

Coolaroo shade sails use breathable knitted HDPE fabric. Unlike a solid waterproof membrane, the knitted construction allows air to circulate through the fabric and helps hot air beneath the sail continue to escape.

Coolaroo also provides long-lasting UV protection built into the core of every fibre of the fabric. Depending on the range, Coolaroo shade products can block up to 95% of harmful UV rays.

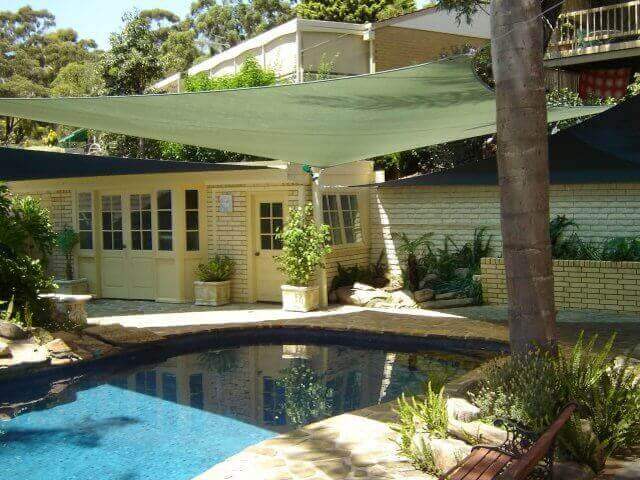

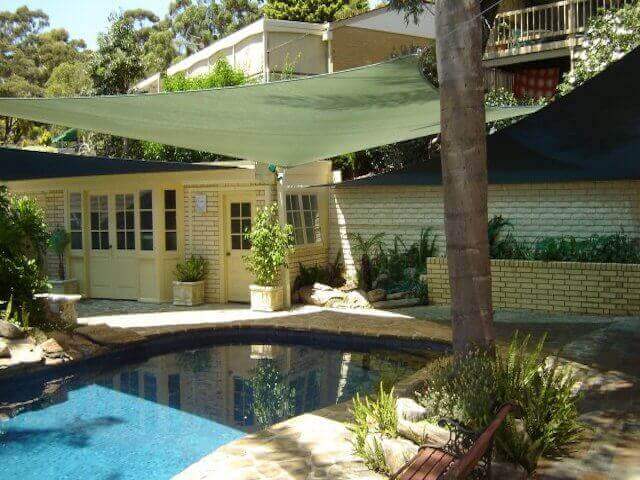

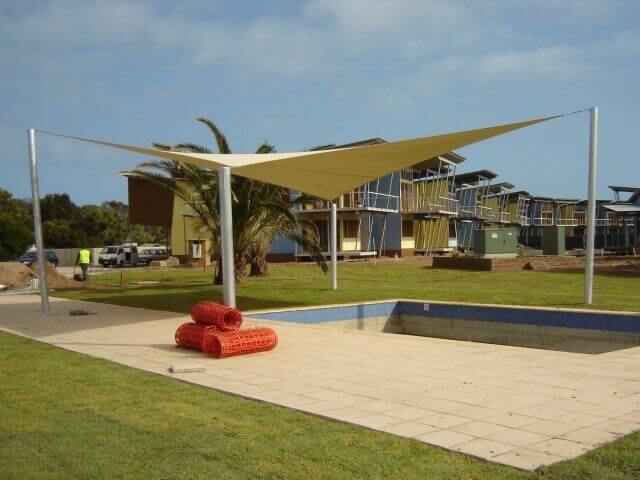

This combination of shade, UV protection and airflow makes them particularly well suited to gardens, patios, pools and outdoor seating areas used during warm weather.

Once you have an idea of the shape and layout you prefer, measure the available space and identify your potential fixing points.

You can then compare our triangular, square and rectangular Coolaroo shade sails in the catalogue and check the installation guide for practical information about positioning, tension and fixing hardware.

If your space falls between standard sizes, remember that the sail itself does not need to exactly match the distance between the anchor points.
